Vision AI Platform
for Anywhere
The open-source, modular design, and programmable system to build your next vision AI project

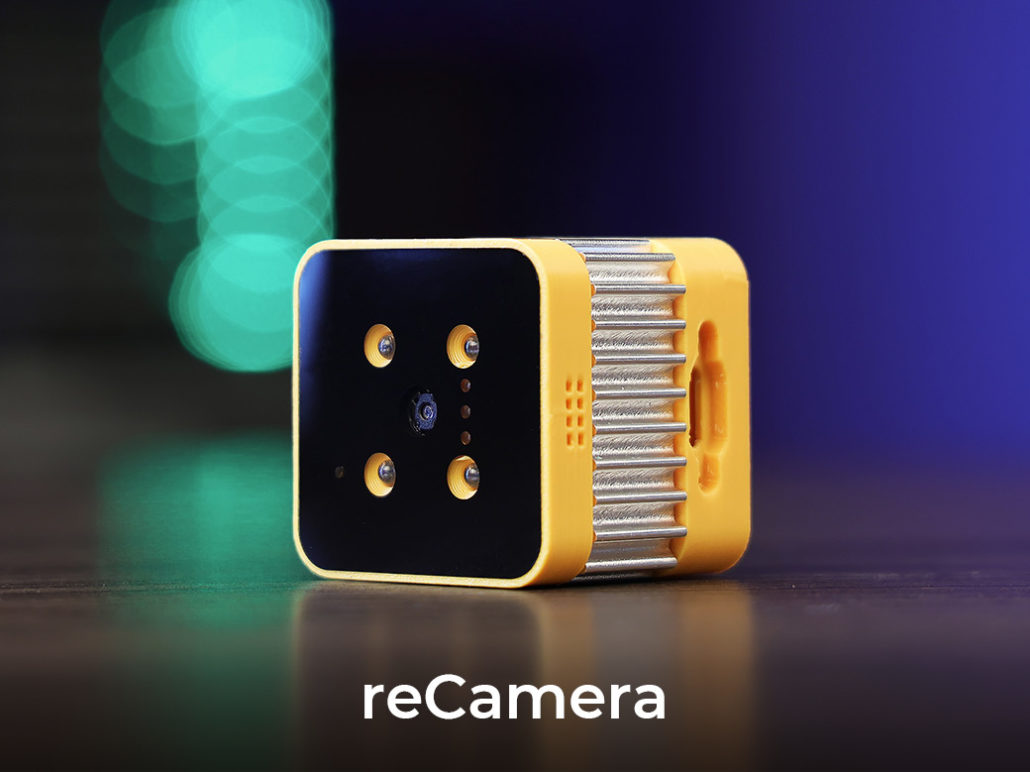

What is reCamera?
Craft Vision AI for anywhere!
reCamera is an open-source and tiny size AI camera, programmable and customizable, powered by an RISC-V SoC, delivering on-device 1 TOPS AI performance with video encoding 5MP @30 FPS. The modular hardware design and expandable interfaces offers the most verstile platform for developers building vision AI systems.

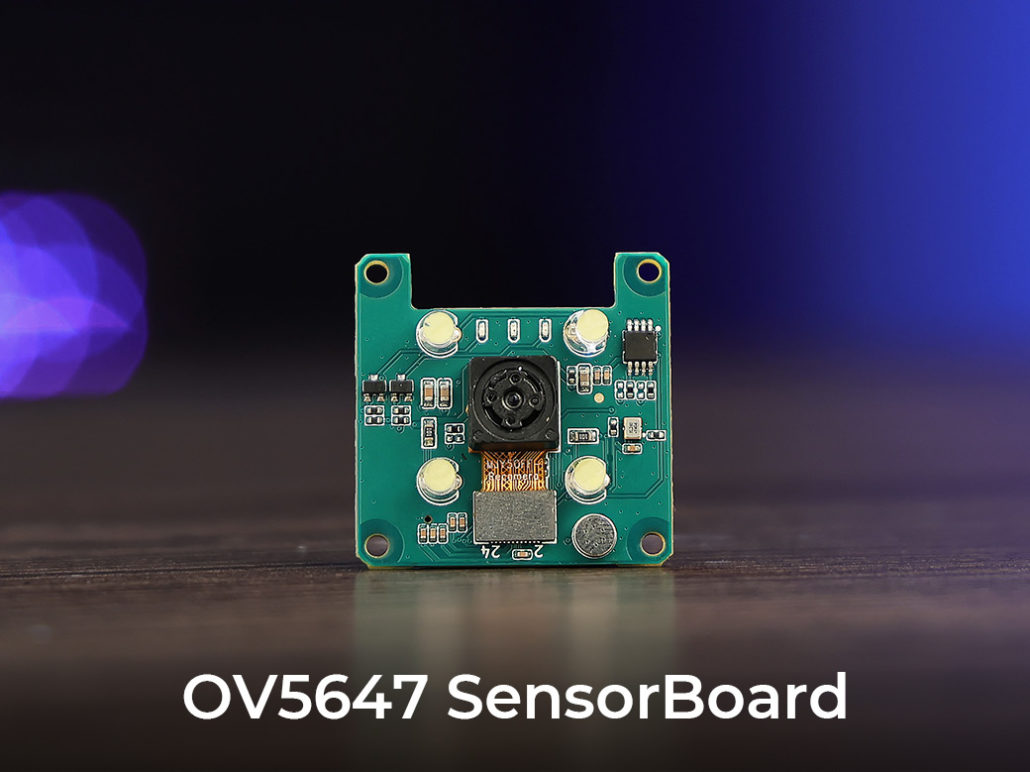

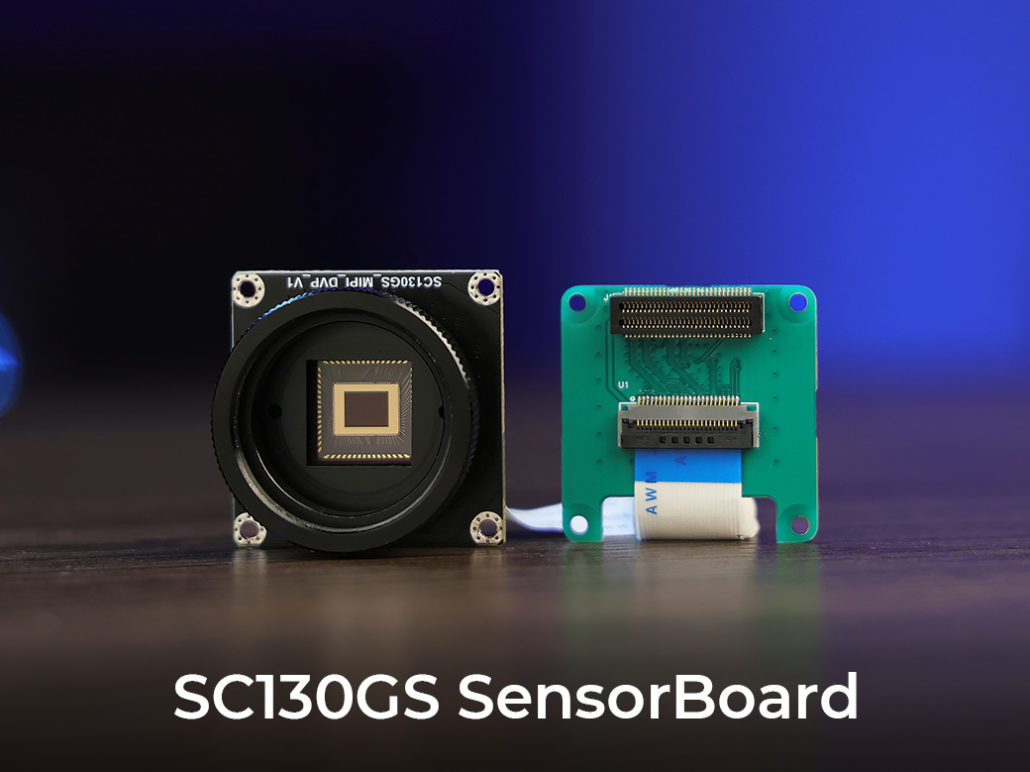

- Custom sensor compatibility

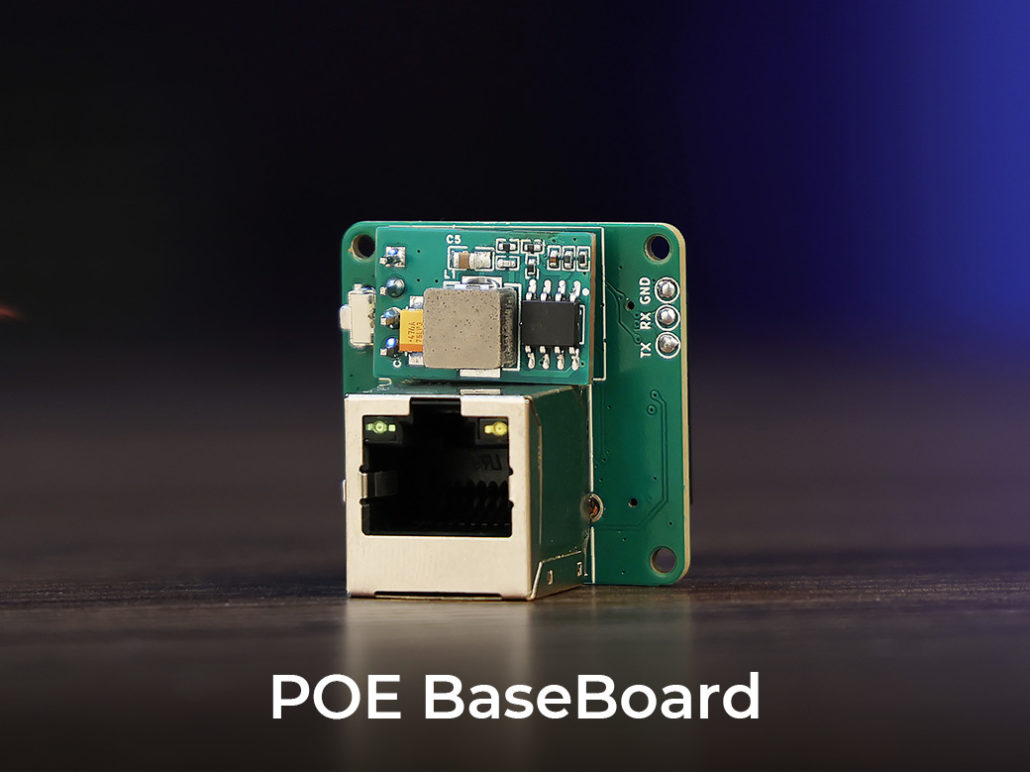

- Flexible interface expansion
- Tiny as 40x40x36.5mm
- Built-in Node-RED no-code workflow for quick setup & AI deployment
Hardware Leads the Way
Why reCamera is special to any other AI cameras? Its fully modular design, offering maximum flexibility for customization. You can easily swap out sensors to meet your specific needs.

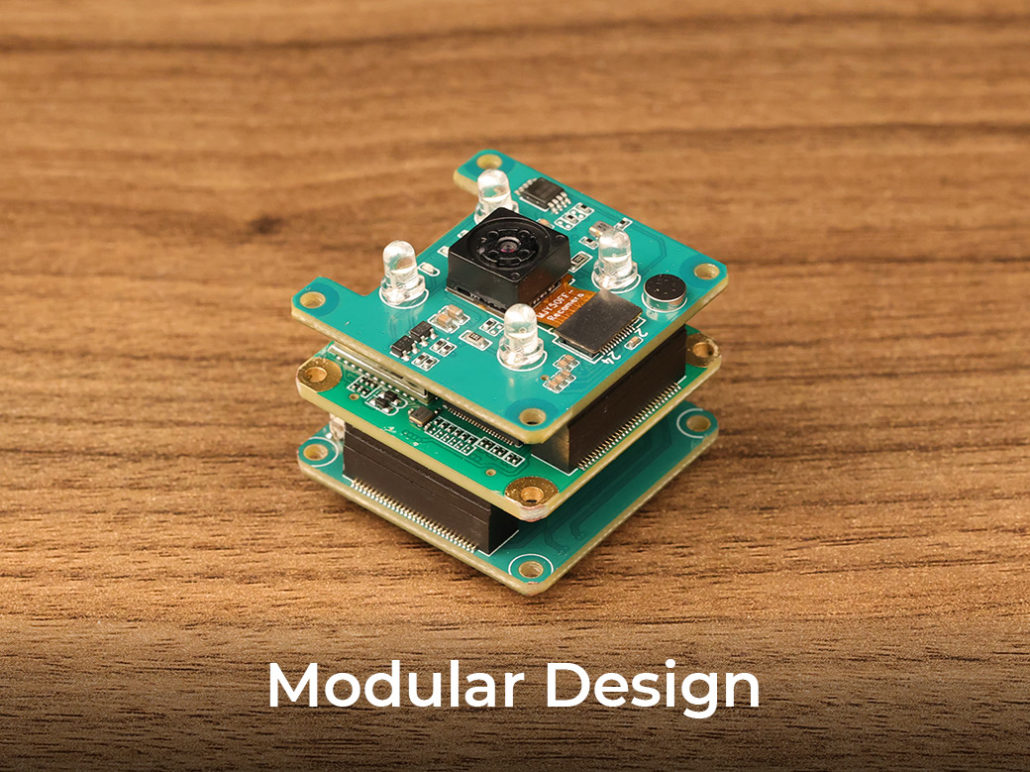

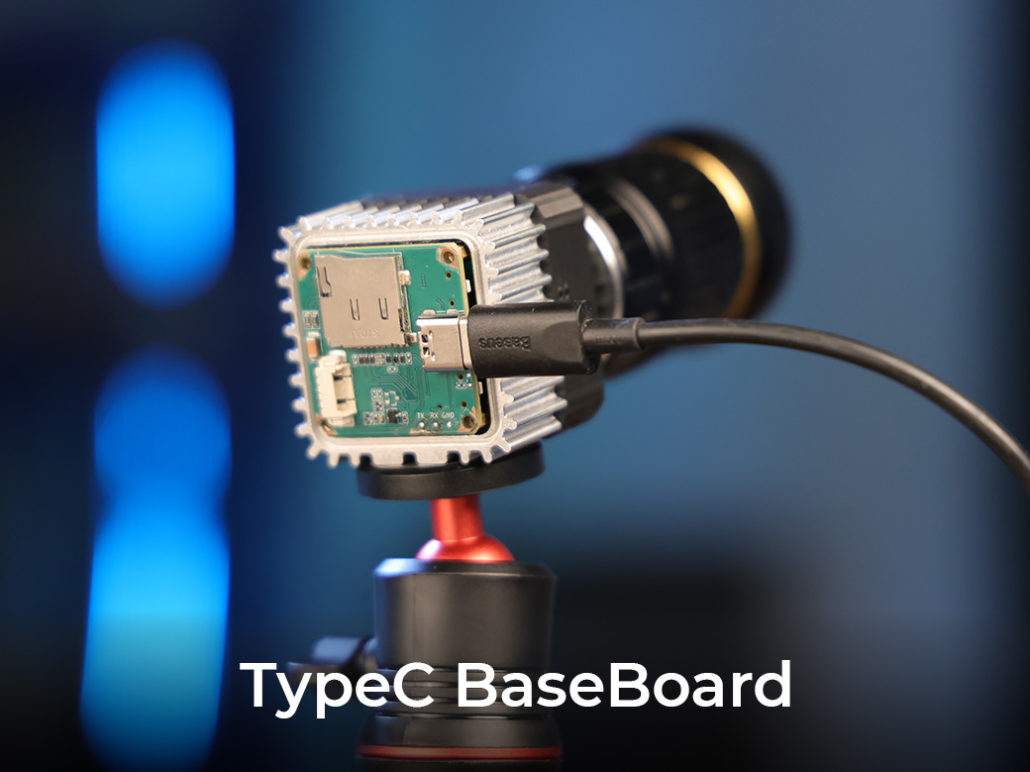

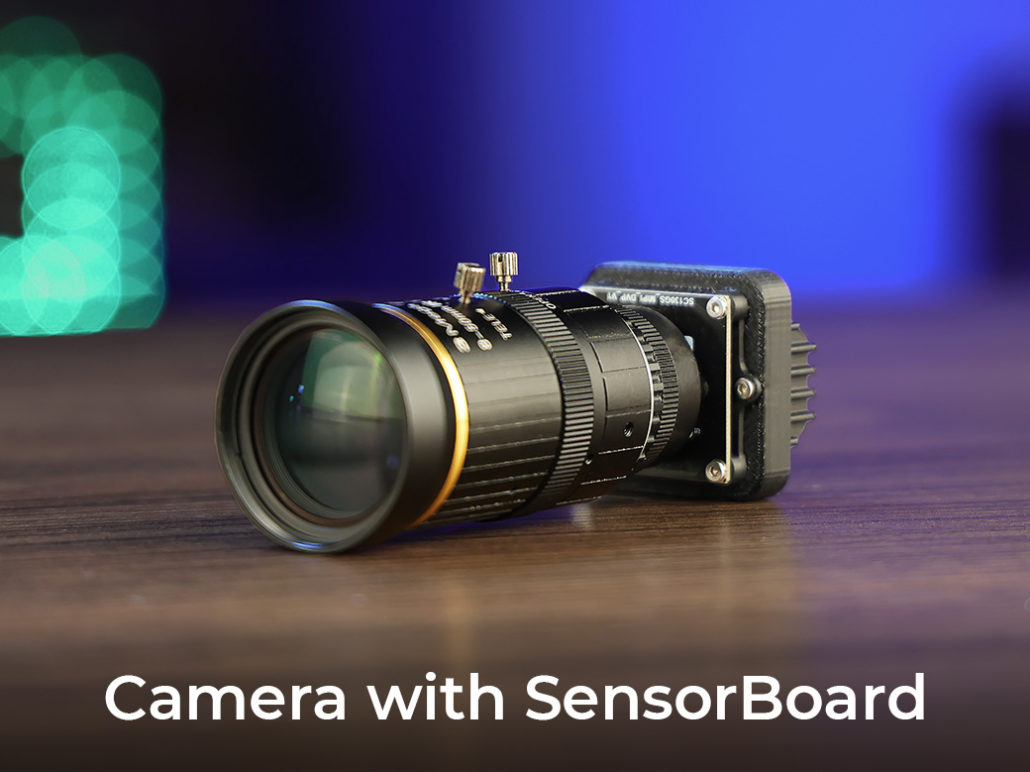

Modular Design
Detail Specifications
| Product Name | reCamera 2002 | reCamera 2002w | |
|---|---|---|---|
| Processor System | Al Performance | 1TOPS@Int8 | |
| SOC | SG2002 | ||
| CPU | C906@1GHz + C906@700MHz | ||
| MCU | 8051@8KB SRAM | ||
| Memory | 256MB | ||
| Video Encode | 5MP @ 30Fps | ||
| Camera Sensor | OV5647 | ||
| Storage | eMMC | (version1) 8GB (version2) 64GB | |
| Expansion | removable TF card (up to 2TB, not included) | ||
| I/O | Ethernet | 100Mbps | |
| Wireless | / | WIFI2.4G/5G BT4.2/5.0 | |
| USB | USB Type-C(2.0) | ||
| Button | 1 Reset Button, 1 Boot Button | ||
| Fill Light | 0.3w White Light | ||
| Status Light | 1 Power Indicator, 2 IO Programmable | ||
| Audio | Mic | On-board Mic | |
| Speaker | External Speaker | ||
| Dimension | 40x40x36.5mm | ||
| Power | 5V 1A | ||

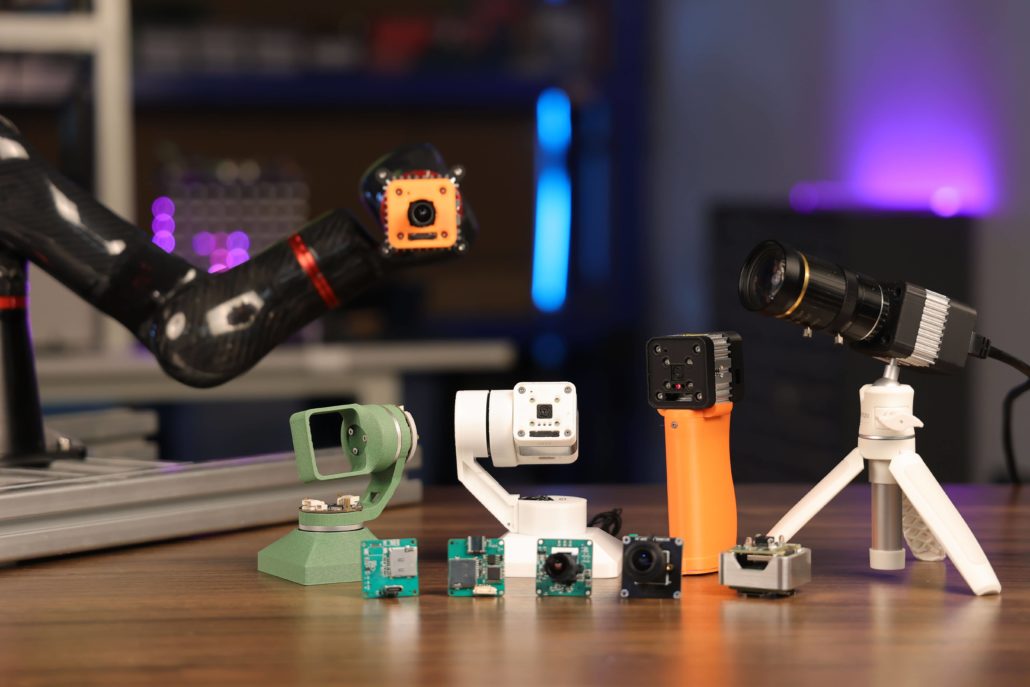

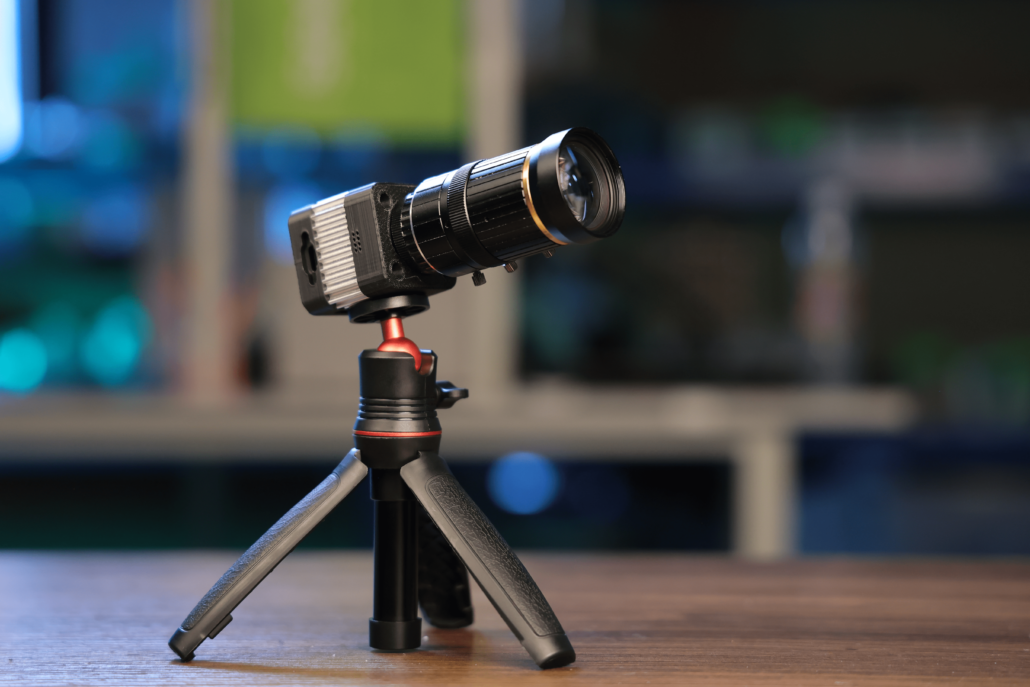

reCamera Gallery
Software Defines Upper Limit

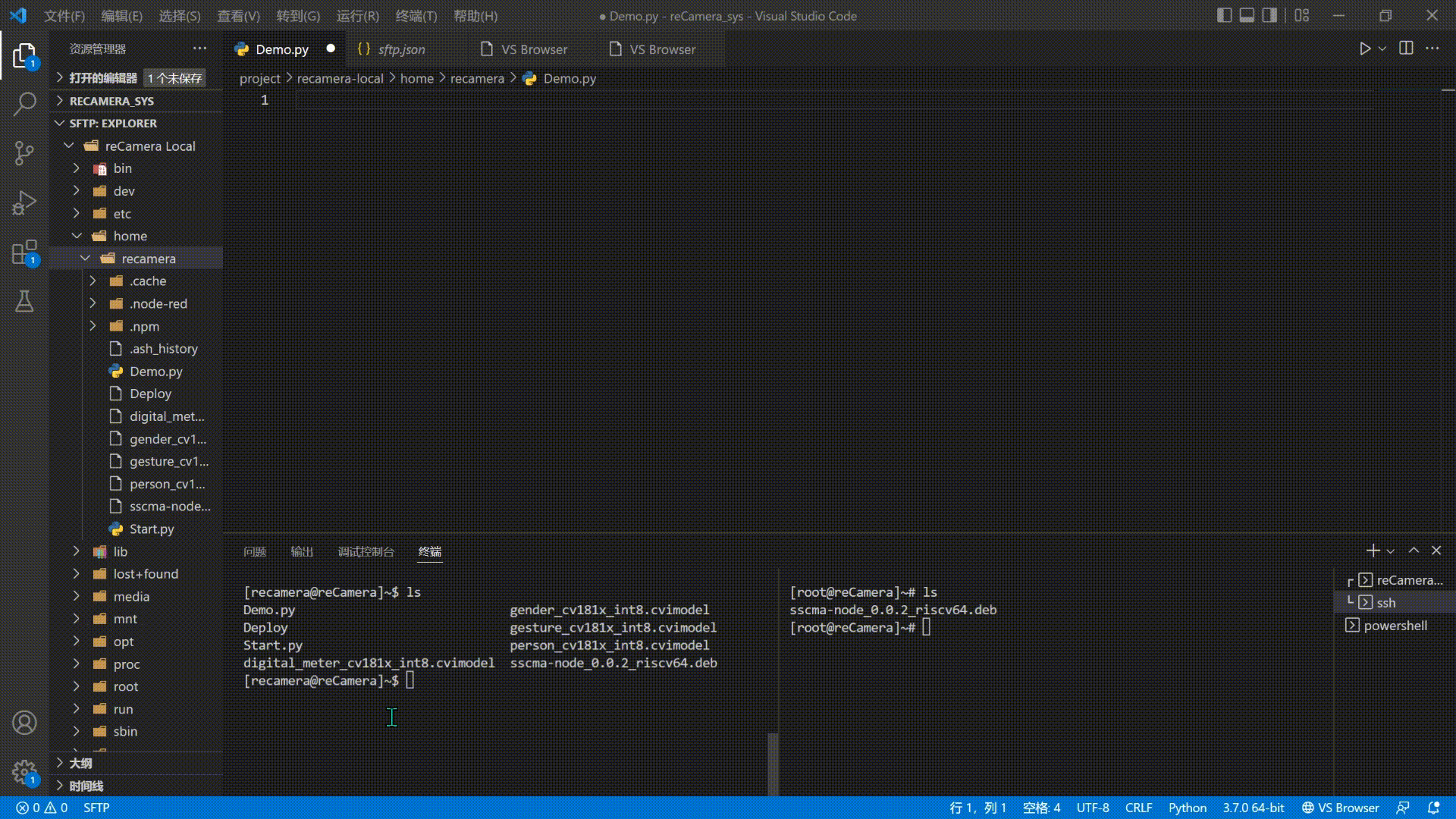

Buildroot System for Programming
A lightweight customized Linux system:
Deploy the compiled executive file from C or Rust.
Support Python and Node.js directly from console
Multi-threading supported, running all tasks without worrying about the conflicts

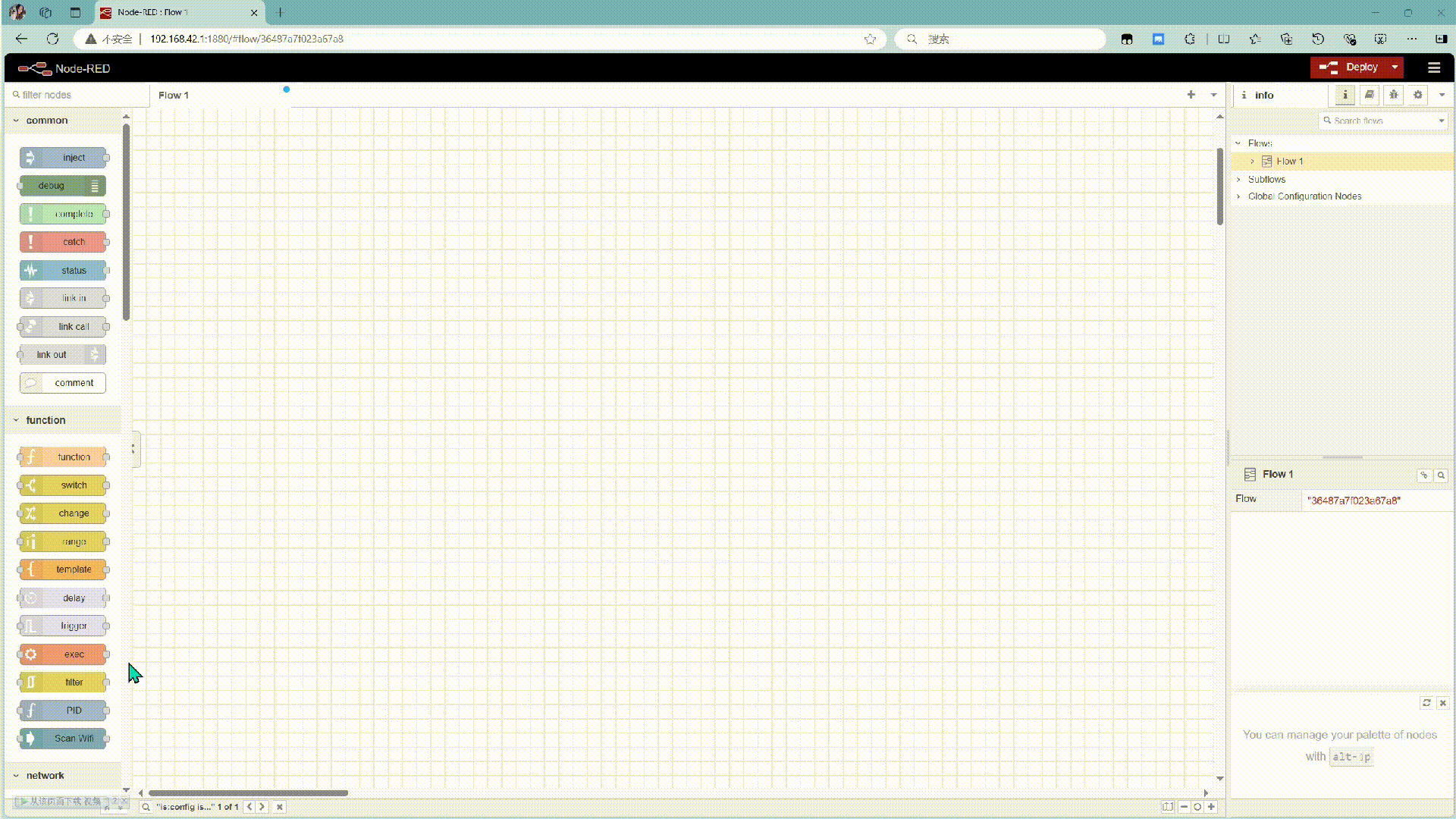

Node-RED Integration for No-code Workflow
Customized nodes for the reCamera allow you to call the camera API and use the TPU to load models directly onto the device.
Simple steps as:
select node module
configurate Node
deploy
Ready for Real-world Application
reCamera comes with native support and licensing for Ultralytics YOLO. Ultralytics Solutions provide the cutting-edge applications of YOLO models, offering real-world solutions like object counting, heatmap, blurring, and security systems, enhancing efficiency and accuracy in diverse industries.
Deploy reCamera Everywhere!

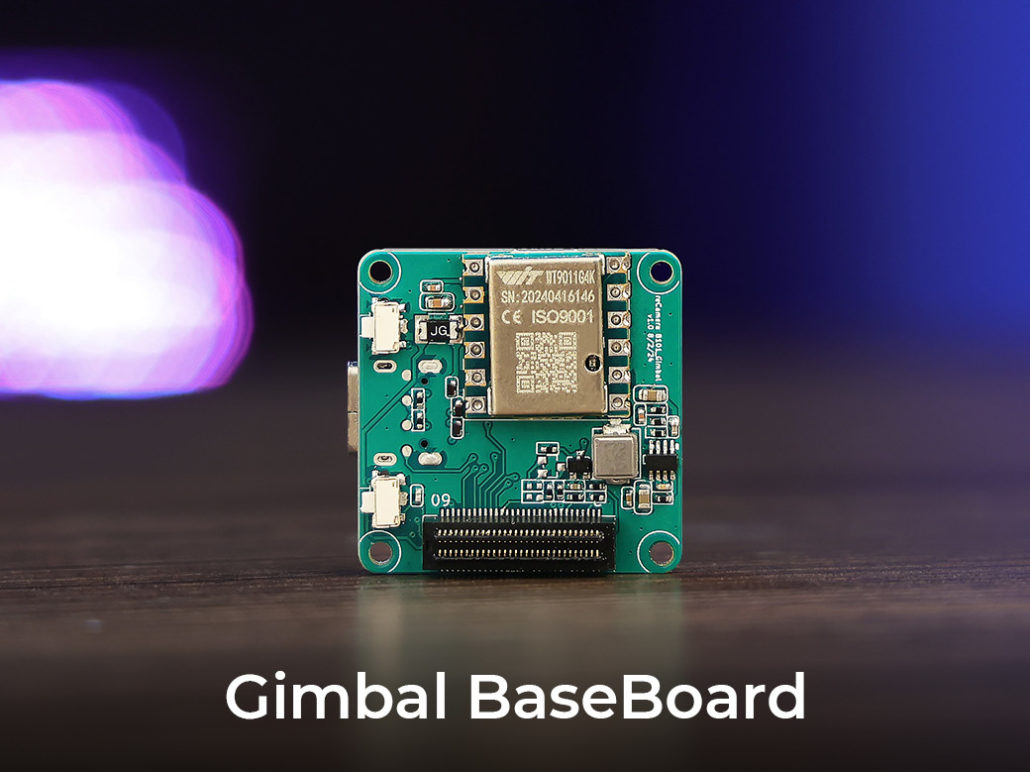

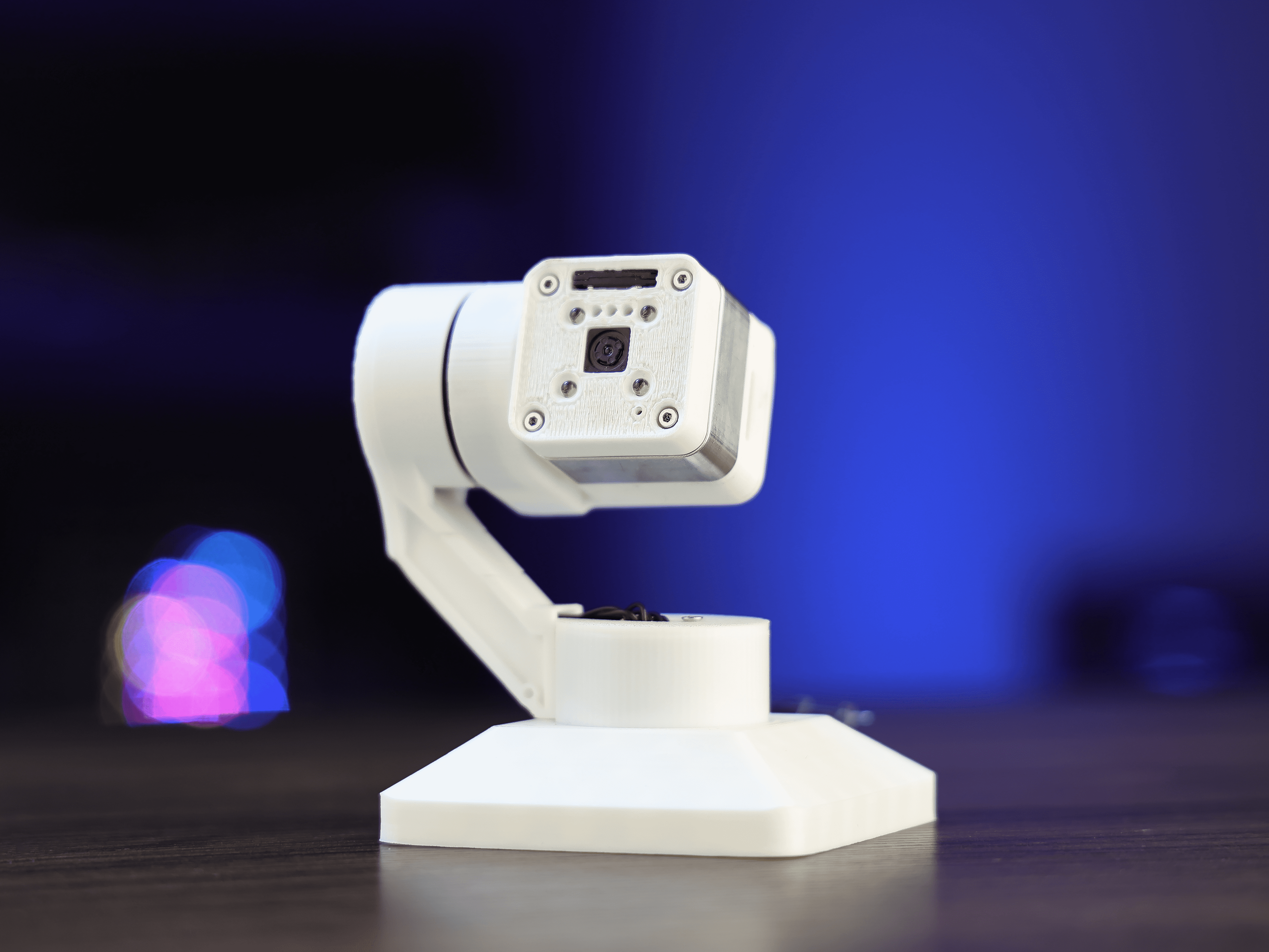

reCamera Gimbal

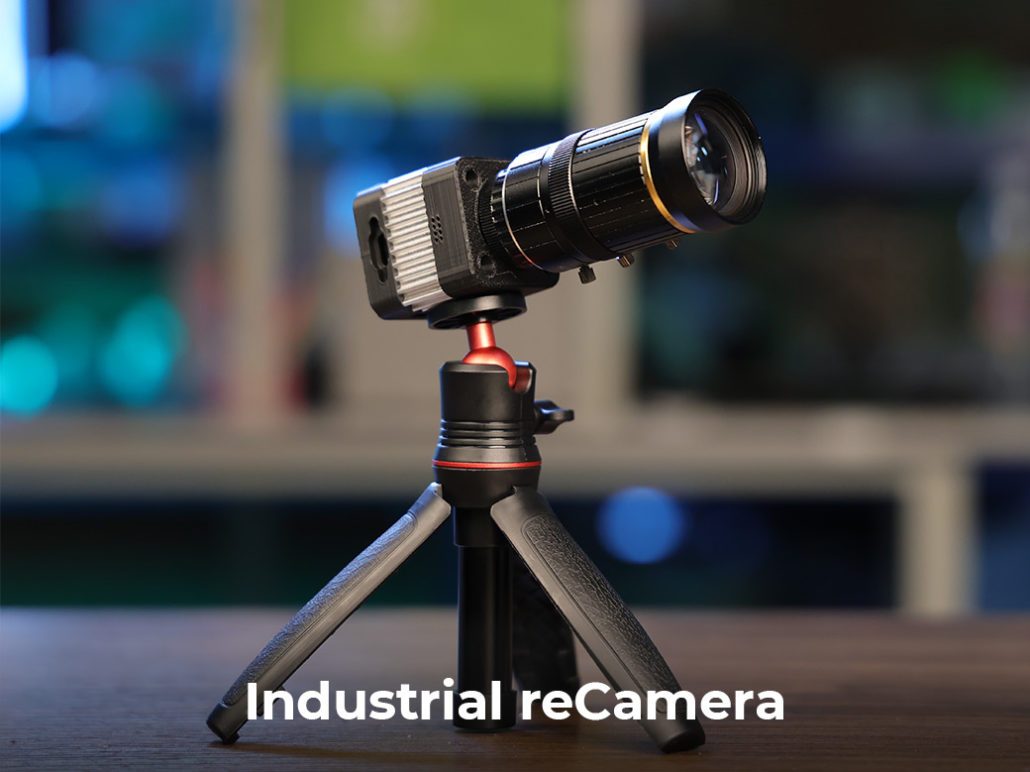

reCamera Industrial

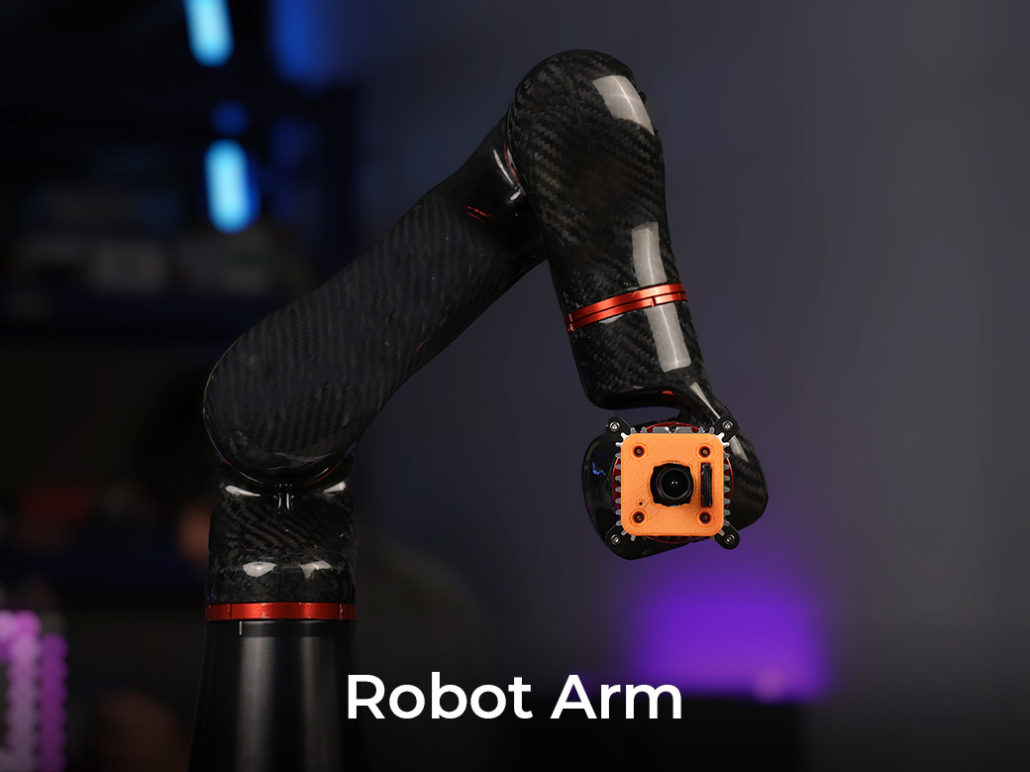

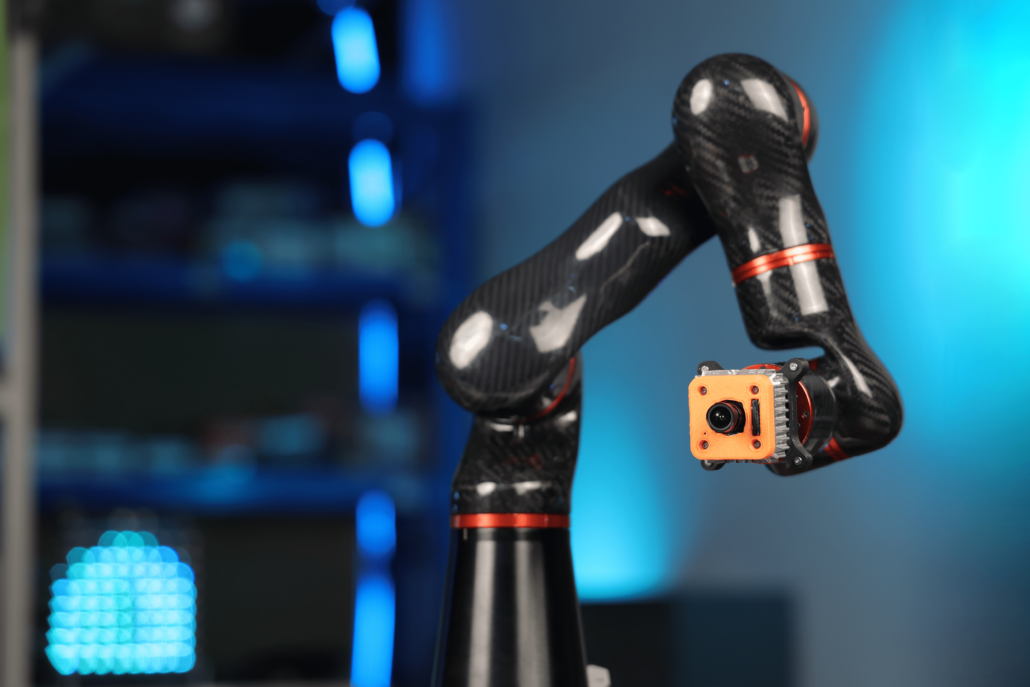

reCamera with Robot Arm
Grow up within Community
GitHub
Open-source in hardware and software, explore and build flexible expandabilities and seamless workflow with us!
Discord
Join reCamera Discord group to get the latest updates, and discuss further with our team and fellow tech enthusiasts.
