NVIDIA® Jetson Comparison
NVIDIA Jetson Nano / Xavier NX / Orin Nano / Orin NX / AGX Xavier / AGX Orin
NVIDIA Jetson Module Powered Edge Devices
NVIDIA Jetson Compatible Carrier Boards
Zoom in the table for the whole details
Module Specification
|
|
NANO
|
TX2 NX
|
XAVIER NX*
|
ORIN NANO 4GB
|
ORIN NANO 8GB
|
ORIN NX 8GB
|
ORIN NX 16GB
|
AGX XAVIER**
|
AGX ORIN 32GB
|
AGX ORIN 64GB
|
|
GPU
|
128 Core
Maxwell 0.5 TFLOPs (FP16) |
256 Pascal cores
1.3 TFLOPS (FP16) |
384 Core Volta
21 TOPs (INT8) |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores)
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
1024 Cores
Ampere NVDLA V2 70 TOPS (INT8) |
1024 Cores
Ampere 2x NVDLA V2 100 TOPS (INT8) |
512 Core Volta +
NVDLA 10 TFLOPS (FP16) 32 TOPS (INT8) |
1792 Cores
Ampere 2x NVDLA V2 200 TOPS (INT8) |
2048 Cores
Ampere 2x NVDLA V2 275 TOPS (INT8) |
|
CPU
|
4 core ARM A57
|
6 core Denver
and A57 (2x) 2MB L2 |
6 core Carmel
ARM V8 (3x) 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 |
6 cores A78 ARM
V8 1.5MB L2 + 4MB L3 |
8 cores A78 ARM
V8 2MB L2 + 4MB L3 |
8 core Carmel
ARM V8 (4x) 2MB L2 + 4MB L3 |
8-core A78 ARM
V8 2MB L2 + 4MB L3 |
12 core A78 ARM
V8 3MB L2+ 6MB L3 |
|
Memory
|
4 GB 64-bit
LPDDR4 25.6 GB/s |
4 GB 128-bit
LPDDR4 51.2 GB/s |
8GB or 16GB
128-bit LPDDR4x 51.2 GB/s |
4GB 64-bit
LPDDR5 34 GB/s |
8GB 128-bit
LPDDR5 68 GB/s |
8 GB 128-bit
LPDDR5 102.4 GB/S |
16 GB 128-bit
LPDDR5 102.4 GB/S |
32GB or 64 GB
256-bit LPDDR4x 137 GB/s |
32 GB 256-bit
LPDDR5 204.8 GB/s |
64 GB 256-bit
LPDDR5 204.8 GB/s |
|
Storage
|
16 GB eMMC
|
16 GB eMMC
|
16 GB eMMC
|
- (Supports external NVMe)
|
- (Supports external NVMe)
|
- (Supports
external NVMe) |
- (Supports
external NVMe) |
32 GB eMMC
|
64 GB eMMC
|
64 GB eMMC
|
|
Video Encode
|
1x 4K30 (H.265)
2x 1080p60 (H.265) |
1x 4K60 (H.265)
3x 4K30 (H.265) 4x 1080p60 (H.265) |
2x 4K60 (H.265)
4x 4K30 (H.265) 10x 1080p60 (H.265) 2x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores
|
1080p30 supported by 1-2 CPU cores
|
1x 4K60 (H.265)
3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1x 4K60 (H.265)
3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
4x 4K60 (H.265)
8x 4K30 (H.265) 16x 1080p60 (H.265) 32x 1080p30 (H.265) |
1x 4K60 (H.265)
3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1x 4K60 (H.265)
3x 4K30 (H.265) 7x 1080p60 (H.265) 15x 1080p30 (H.265) |
|
Video Decode
|
1x 4K60 (H.265)
4x 1080p60 (H.265) |
2x 4K60 (H.265)
7x 1080p60 (H.265) 14x 1080p30 (H.265) |
2x 8K30 (H.265)
6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
1x 4K60 (H.265)
2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 4K60 (H.265)
2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 8K30 (H.265)
2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 8K30 (H.265)
2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
2x 8K30 (H.265)
6x 4K60 (H.265) 12x 4K30 (H.265) 26x 1080p60 (H.265) 52x 1080p30 (H.265) |
1x 8K30 (H.265)
2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 8K30 (H.265)
3x 4K60 (H.265) 7x 4K30 (H.265 11x 1080p60 (H.265) 23x 1080p30 (H.265 |
|
Camera
|
12 (3x4 or 4x2)
MIPI CSI-2 D-PHY 1.1 lanes (18 Gbps) |
12 lanes (3x4 or
5x2) MIPI CSI-2 D-PHY 1.2 (30 Gbps) |
12 lanes (3x4 or
6x2) MIPI CSI-2 D-PHY 1.2 (30 Gbps) |
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps) |
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps) |
8 lanes MIPI CSI-
2 D-PHY 1.2 (20 Gbps) |
8 lanes MIPI CSI-
2 D-PHY 1.2 (20 Gbps) |
16 lanes MIPI
CSI-2 8 lanes SLVS-EC D-PHY (40 Gbps) C-PHY (59 Gbps) |
16 lanes MIPI
CSI-2 D-PHY 2.1 (40 Gbps) C-PHY 2.0 (164 Gbps) |
16 lanes MIPI
CSI-2 D-PHY 2.1 (40 Gbps) C-PHY 2.0 (164 Gbps) |
|
Mechanical
|
69.6mm x 45mm
260 pin edge connector |
69.6mm x
45mm 260 pin connector |
69.6mm x 45mm
260 pin edge connector |
69.6mm x 45mm
260-pin SO-DIMM connector |
69.6mm x 45mm
260-pin SO-DIMM connector |
69.6mm x 45mm
260 pin edge connector |
69.6mm x 45mm
260 pin edge connector |
100mm x 87mm
699 pin connector |
100mm x 87 mm
699 pins connector |
100mm x 87 mm
699 pins connector |
|
Software
|
Jetpack SDK - Unified software release across all Jetson products
|
||||||||
*Refers to both Jetson Xavier NX and Jetson Xavier NX 16GB
**Refers to both Jetson AGX Xavier and Jetson AGX Xavier 64GB
source: NVIDIA
reThings Selection Guide

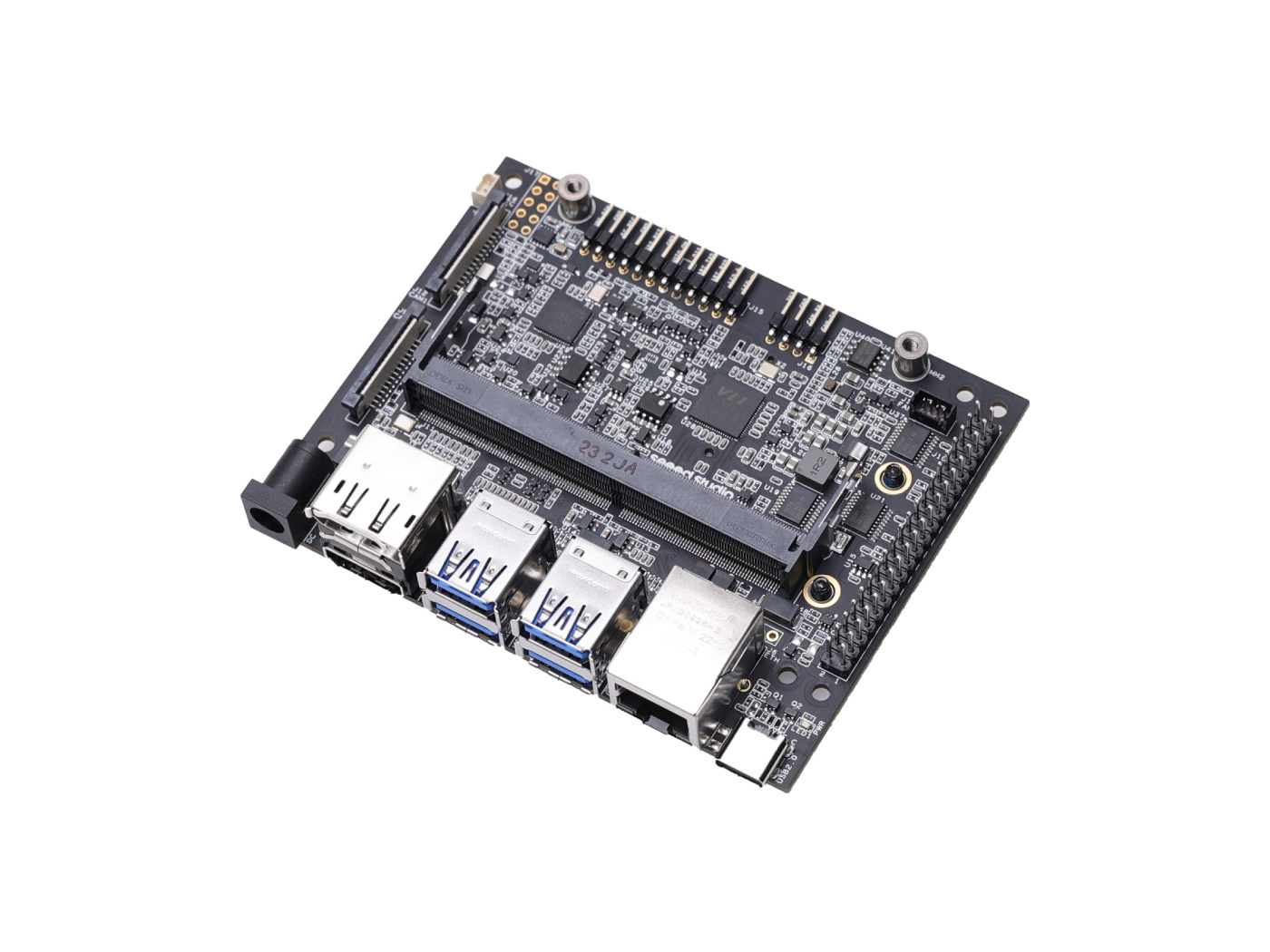

NVIDIA®️ Jetson Module Compatible Carrier Board Comparison
|
|
|
|
|
|
|
|
|
|
|
|
Carrier board
|
|||||||
|
Module Compatibility
|
NVIDIA® Jetson™ Nano
|
NVIDIA® Jetson™ Xavier NX
|
NVIDIA® Jetson™ Orin NX/Orin Nano
|
NVIDIA® Jetson™ Nano/Xavier NX/TX2 NX
|
NVIDIA® Jetson™ Nano/Xavier NX/TX2 NX
|
NVIDIA® Jetson™ Nano/Xavier NX/TX2 NX
|
NVIDIA® Jetson™ Orin NX/Orin Nano
|
NVIDIA® Jetson™ Orin NX/Orin Nano
|
NVIDIA® Jetson™ Orin NX/Orin Nano
|
|
PCB Size / Overall Size
|
100mm x 80mm
|
100mm x 80mm
|
100mm x 80mm
|
87mm x 52mm
|
170mm x 100mm
|
115mm x 105mm
|
87mm x 52mm
|
115mm x 105mm
|
101.5mm x 95mm
|
|
Display
|
1x HDMI
|
1x HDMI + 1x DP
|
1x HDMI
|
1x HDMI
|
2x HDMI
|
2x HDMI
|
1x HDMI
|
1x HDMI
|
1x DP
|
|
CSI Camera
|
2x CSI
|
2x CSI
|
2x CSI
|
1x CSI
|
6x CSI
|
1x CSI
|
1x 15pins CSI camera connect
|
/
|
1x DP
|
|
Nelororkin
|
1x Gigabit Ethernet(10/100/1000)
1x M.2 KEY (WiFi) (module not included) |
1x Gigabit Ethernet(10/100/1000)
1x M.2 KEY (WiFi) (module not included) |
1x Gigabit Ethernet(10/100/1000)
1x M.2 KEY (WiFi) (module not included) |
1x Gigabit Ethernet(10/100/1000)
1x M.2 KEY (WiFi) (module not included) |
2x Gigabit Ethernet(10/100/1000)
1x M.2 KEY (WiFi) (module not included) |
2x Gigabit Ethernet(10/100/1000)
1x M.2 KEY (WiFi) (module not included) 1x WiFi/BLE module (4-pin interface) |
1x Gigabit Ethernet(10/100/1000)
|
2x Gigabit Ethernet(10/100/1000)
|
2x Gigabit Ethernet(10/100/1000)
|
|
USB
|
1x USB 3.0 Type-A
2x USB 2.0 Type-A 1x USB Type-C (Not support power input) |
4x USB 3.1 Type-A (Integrated USB 2.0)
1x USB 2.0 Type-C (Not support power input) |
4x USB 3.1 Type-A (Integrated USB 2.0)
1x USB 2.0 Type-C (Not support power input) |
1x USB 3.0 0.5mm pitch 20Pin ZIF
2x USB 3.0 Type-A (Integrated USB 2.0) 1x USB Micro B (Not support power input) |
4x USB 3.0 Type-A (Integrated USB 2.0)
1x USB 2.0 Type-C (support OTG) |
1x USB 2.0 0.5mm pitch 20Pin ZIF
4x USB 3.0 Type-A 1x USB 2.0 Type-C |
2x USB 3.0 Type-A (Integrated USB 2.0)
2x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
4x USB 3.0 Type-A (Integrated USB 2.0)
1x USB 2.0/3.0 Type-C 1x USB 3.0 0.5mm pitch 20P ZIF |
4x USB 3.2 Type-A (Integrated USB 2.0)
1x USB 2.0 + 3.2 Type-C |
|
Storage Expansion
|
1x TF_Card (CLK Frequency 48Mhz)
|
1x M.2 KEY M
|
1x M.2 KEY M
|
1x M.2 KEY M
1x TF_Card |
5x SATA
1x TF_Card |
1x M.2 KEY M (NVMe SSD)
MicroSD card slot |
1x M.2 KEY M 2242 interface
|
1x M.2 KEY M
|
1x M.2 KEY M
|
|
Audio
|
/
|
1x Audio Jack
2x Microphone interface 2x Speaker interface |
1x Audio Jack
2x Speaker interface |
/
|
1x Audio Jack
1x Speaker interface |
1x 3.5 Audio Jack
2x MIC 2x Speaker interface 1x Speaker feedback |
|
|
SPI Bus
|
2x SPI Bus (+3.3V Level)
|
1x SPI Bus (+3.3V Level)
|
2x SPI Bus
|
2x SPI Bus
|
1x SPI Bus
|
||
|
Fan Connector
|
1x Fan (5V PWM)
|
2x Fan (12V/5V)
1x Fan (5V PWM) |
1x Fan (5V PWM)
|
||||
|
CAN
|
/
|
1x CAN
|
1x CAN (FD)
|
||||
|
Multifunctional port
|
1x 40-Pin IO header(GPIO, I2C, UART)
1x 12-Pin header(UART, CONTROL) |
1x 40-Pin IO header
1x 12-Pin header(UART, CONTROL) |
2.0 Pitch 40-Pin(1x UART
1x SPI Bus(+3.3V Level) 2x GPIO(+3.3v Level)) 2.0 Pitch 14-Pin(RESET, CAN, RECOVERY) |
1x UART
1x SPI Bus(+3.3V Level) 2x I2C Link(+3.3V I/O) 2x GPIO(+3.3v Level) |
1x CAN
1x RS485, 1x RS232 1x UART 1x SPI Bus(+3.3V Level) 2x I2C Link(+3.3V I/O) 1x Fan(5V PWM) |
1x 40-Pin IO header(1x I2S, 2x I2C, 2x UART, 2x SPI)
1x 14-Pin header(1x UART, 1x CAN) |
1x 20-Pin IO connector(1x CAN, 1x RS485, 2x I2C, 2x UART, 2x GPIO, 2x SPI)
|
1x 40-Pin
2x IIC 7x IO 3.3V 2x UART 1x DEBUG 1x POWER 1x RESET 1x RECOVERY |
|
RTC
|
Battery not included
|
1x RTC socket (rechargeable 3V Lithium battery connector)
|
1x RTC socket (support rechargeable battery)
|
1x 3.0V RTC
|
|||
|
Power Supply
|
USB Type-C 5V/3A (Not include a power cord)
|
12V/5A power cord only
|
12V/5A power cord only
|
19V/4.74A power cord only
|
19V/4.74A power cord only
|
9V-36V DC
|
9V-20V DC, 7A
|
12V(7A) - 36V(3A) DC
|
9V-20V(MAX 60W) DC
|
|
Operating Temperature
|
0℃ ~ 60℃
|
0℃ ~ 60℃
|
-10℃ ~ 60℃
|
-25℃ ~ 65℃
|
-25℃ ~ 80℃
|
-25℃ ~ 80℃
|
-25℃ ~ 65℃
|
-25℃ ~ 75℃
|
-25℃ ~ 65℃
|

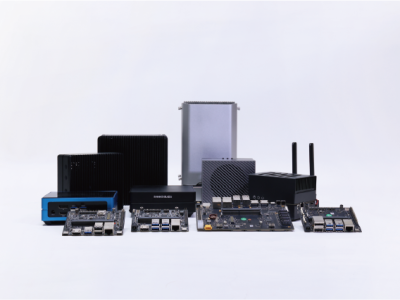

NVIDIA® Jetson Module Powered Edge Device Comparison
|
Production Module
|
Jetson Nano
|
Jetson Xavier NX
|
Jetson Orin Nano
|
Jetson Orin NX
|
Jetson AGX Orin
|
|||
|
Device
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Name
|
||||||||
|
Production Module
|
Jetson Nano 4GB
|
Jetson Xavier NX 8GB
|
Jetson Xavier NX 16GB
|
Jetson Xavier NX 16GB
|
Jetson Orin Nano 4GB
|
Jetson Orin Nano 8GB
|
Jetson Orin NX 16GB
|
Jetson Orin NX 8GB
|
Jetson Orin NX 16GB
|
Jetson AGX Orin 64GB
|
|
Al Performance
|
0.5 TFLOPS
|
21 TOPS
|
20 TOPS
|
40TOPS
|
100 TOPS
|
7OTOPS
|
100 TOPS
|
275 TOPS
|
|
GPU
|
NVIDIA Maxwel™ architecture with 128 NVIDIA CUDA® cores
|
384-core NVIDIA Volta™ GPU WITH 48 Tensor Cores
|
512-core NVIDIA Ampere
architecture GPU with 16 Tensor Cores |
NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
|
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
|
|||
|
CPU
|
NVIDIA Quad core Arm® Cortex®-A57 MPCore processor
|
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU, 6MB L2 + 4MB L3
|
6-core Arm® Cortex®-
A78AE v8.2 64bit CPU 1.5 MB L2 + 4MB L3; 8-core Arm® Cortex®-A78AE V8.2 64bit CPU 2MB L2 +4MB L3 |
6-core Arm® Cortex®-
A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-
A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 . |
8-core Arm® Cortex®- A78AE
v8.2 64- bit CPU 2MB L2 + 4MB 3 |
6-core Arm® Cortex®-
A78AE v8.2 64-bit CPU |
12-core Arm® Cortex® -
A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
Memory
|
4GB 64 - bit LPDDR4,
1600MHz 25.6 GB/s |
8GB 128 - bit LPDDR4 x 59.7GB/s
|
16GB 128 -bit LPDDR4 x 59.7GB/s
|
4GB 64-bit LPDDR5
34 GB/s |
8GB 128-bit LPDDR5 68GB/s
|
8GB 128-bit LPDDR5 102.4GB/s
|
16GB 128-bit LPDDR5 102.4GB/s
|
64GB 256-bit LPDDR5
204.8GB/s |
|
Storage
|
.
16 GB eMMC 5.1 1* M.2 KEY M connector |
16GB eMMC 5.1
M.2 Key M PCle Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included) |
16 GB eMMC 5.1
256GB SATA lll SSD 2* SATA III data connectors 2* SATA III power connectors |
1* M.2 Key M (128GB NVMe SSD included)
|
128GB NVMe SSD
|
M.2 Key M (2280) PCle Gen4.0 SSD
(M.2 NVMe SSD 128G included) |
1°M.2 Key M (128GB NVMe
SSD included) |
M.2 Key M PCle Gen4.0 SSD
(M.2 NVMe 2280 SSD 128GB included) |
64GB eMMC 5.1
|
|
Video Encode
|
1* 4K30 | 2* 1080p60 |
4* 1080p30 | 4* 720p60 | 9* 720p30 (H.265/H.264) |
2* 4K60 | 4* 4K30 | 10* 1080p60 | 22* 1080p30 (H.265);
2* 4K60 | 6* 4K30 | 10* 1080p60 | 22* 1080p30 (H.264) |
1080p30 supported by 1-2 CPU cores
|
1* 4K60 (H.265) | 3* 4K30
(H.265) | 6* 1080p60 (H.265) | 12* 1080p30 (H.265) |
Standards supported: H.265 (HEVC), H.264, AV1
1* 4K60 (H.265) | 3* 4K30 (H.265) | 6* 1080p60 (H.265) | 12* 1080p30 (H.265) |
2* 4K60 (H.265) | 4* 4K30 (H.265) | 8* 1080P60 (H.265) | 16* 1080p30 (H.265)
|
||
|
Video Decode
|
1* 4K60 | 2* 4K30 |
4* 1080p60 | 8* 1080p30 | 9* 720p60 (H.265/H.264) |
2* 8K30 | 6* 4K60 | 12* 4K30 | 22* 1080p60| 44* 1080P (H.265);
2* 4K60 | 6* 4K30 |10* 1080p60 | 22* 1080p30 (H.264) |
1* 4K60 | 2* 4K30 | 5* 1080p60 | 11* 1080p30(H.265)
|
1* 4K60 (H.265) | 2* 4K30 (H.265) | 5* 1080p60 (H.265) | 11* 1080p30 (H.265)
|
Standards supported: H.265 (HEVC), H.264, VP9, AV1
1* 4K60 (H.265) | 2* 4K3 0 (H.265) | 5* 1080p60 (H.265) | 11* 1080p30 (H.265) |
1* 8K30 (H.265) | 2* 4K60 (H.265) | 4* 4K30 (H.265) |
9* 1080p60 (H.265) | 18* 1080p30 (H.265) |
Standards supported:
H.265 (HEVC), H.264, VP9, AV1 1* 8K30 (H.265) | 2* 4K60 (H.265) | 4* 4K30 (H.265) | 9* 1080p60 (H.265) | 18* 1080p30 (H.265) |
1* 8K30 (H.265) | 3* 4K60 (H.265) | 7* 4K30 (H.265) | 11* 1080p60 (H.265) | 22* 1080p30 (H.265)
|
|
Networking
|
1* RJ45 Gigabit Ethernet Connector (10/100/1000)
|
1* LAN1 RJ45 GbE PoE (PSE 802.3 af 15W)
1* LAN2 RJ45 GbE (10/100/1000Mbps) Optional WiFi/ Bluetooth module |
1* RJ45 GbE
1* RJ45 2.5GbE 1* M.2 KEY B connector to support 5G/4G 1* mINI PCIe connector to support LoRa/Series wireless 1* Sim card slot |
1* RJ45 Gigabit Ethernet Connector(10/100/1000)
|
1* LAN1 RJ45
GbE PoE(PSE 802.3 af 15 W) 1* LAN2 RJ45 GbE(10/100/1000Mbps) Optional WiFi/ Bluetooth module support |
1* LAN0 RJ45
GbE (10/100/1000Mbps) 4* LAN RJ45 GbE PoE(PSE 802.3 af 15 W, 10/100/1000Mbps) |
1* RJ45 Gigabit Ethernet
Connector (10/100/1000Mbps) |
1* LAN1 RIJ45 GbE PoE(PSE 802.3 af 15W)
1* LAN2 RI45 GbE (10/100/1000Mbps) Optional WiFi/ Bluetooth module support |
1* LAN0 RJ45 GbE
(10/100/1000Mbps) 4* LAN RJ45 GbE PoE (PSE 802.3 af 15 W, 10/100/1000Mbps) |
RIJ45 connector with
up to 10 GbE |
|
USB
|
4* USB 3.0 Type-A
1* USB Type-C for device mode |
4* USB 3.1 Type-A connector
1* USB Type-C for device mode |
3* USB3.2 Gen1
1* USB2.0 Type-C (Device mode) 1* USB2.0 Type C For Debug UART & RP2040 |
2* USB3.1 Gen2 Type-A connector
1* USB Type-C for Device mode 1* USB Type C for RP2040 Coprocessor |
4* USB 3.2 Type-A
1* USB Type-C for device mode |
3* USB3.2 Gen1
1* USB2.0 Type-C(Device mode) 1* USB2.0 Type-C For Debug UART & RP2040 |
4* USB3.2
1* USB2.0 Type-C(Device mode) 1* USB2.0 Type-C For Debug UART & RP2040 |
4* USB 3.2 Type-A
1* USB Type-C for device mode |
3* USB3.2 Gen1
1* USB2.0 Type-C(Device mode) . 1* USB2.0 Type-C For Debug UART & RP2040 |
4* USB3.2
1* USB2.0 Type-C(Device mode) 1* USB2.0 Type C For Debug UART & RP2040 |
USB Type-C connector: 2* USB 3.2 Gen2
USB Type-A connector: 2* USB 3.2 Gen2, 2* USB 3.2 Gen1 USB Micro-B connector: USB 2.0 |
|
Camera
|
2* CSI camera connectors
(15 pos, 1mm pitch, MIPI CSI-2) |
2* CSI (2-lane 15pin)
|
/
|
2* CSI camera
(15 pos, 1mm pitch, MIPI CSI-2) |
2* CSI (2-lane 15pin)
|
5* GbE RI45 (4 for 802.3 af PSE)
|
2* CS| Cameras
(15 pos, 1mm pitch, MIPI CSI-2 ) |
2* CSI (2-lane 15pin)
|
5* GbE RJ45(4 for 802.3af PSE )
|
16-lane MIPI CSI-2 connector
|
|
Display
|
1* HDMI 2.0 Type A
1* DP |
1* HDMI 2.0 Type-A
|
1* HDMI 2.0 Type A
1* DP 1.4 |
1* HDMI
|
1* HDMI 2.0 Type-A
|
1* HDMI 1.4 Type-A 3840x2160 at 30 Hz
|
1* HDMI
|
1* HDMI 2.0 Type-A
|
1* HDMI 2.1 Type-A 7680x4320 at 30 Hz
|
1* DisplayPort 1.4a(+MST) connector
|
|
Fan
|
1* Fan Connector
(5V PWM) |
Fanless, passive heatsink;
1* Fan connector(5V PWM) |
1* Jetson Xavier NX Fan (5V
PWM) 1* Main Fan (12V) |
1* Fan(5V PWM)
(Fan included) |
Fanless, passive heatsink
|
Fanless, passive heatsink;
1* Fan connector(5V PWM) |
1° Fan (5V PWM)
(Fan included) |
Fanless, passive heatsink
|
Fanless, passive heatsink;
1*Fan connectors(5V PWM) |
.
4-pin fan header |
|
M.2
|
1* M2 Key E (disabled)
|
1* M.2 Key E connector
to support WiFi/BT |
M.2 Key B support 4G/5G
(Module optional) |
/
|
1* M.2 Key E (WiFi/
Bluetooth included) |
M.2 Key B support 4G/5G
(Module optional) |
M.2 Key B (3042/ 3052) support 4G/5G (Module optional)
|
1* M2 Key E
|
M.2 Key B support 4G/5G
(Module optional) |
M.2 Key B (3042/3052) support
4G/5G (Module optional) |
M.2 Key M slot with 4* PCle
Gen4; M.2 Key E slot with 1* PCle Gen4 |
|
PCle
|
/
|
1* Mini PCle for 4G/LoRa
|
/
|
/
|
1* Mini PCle for 4G/LoRa
|
Mini PCle for LoRsWAN@/4G/Series Wireless (Module optional)
|
/
|
1* Mini PCle for 4G/LoRa
|
Mini PCle for LoRaWAN® /
4G Series Wireless (Module optional) |
16* PCIe slot supporting 8* PCIe Gen4
|
|
Multifunctional header/ IO
|
1* 40-pin header (GPIO, I2C, I2S, SPI, UART)
|
DI/DO/CAN/RS232, RS422 and RS485/TPM 2.0 header
|
/
|
1* 40-pin header
1* 12-pin Control and UART header |
DI/DO/CAN/RS232, RS422 and RS485/TPM 2.0 header
|
2* Drive Bays to support 2.5" SATA HDD/SSD (SATA III 6.0Gbps)
1* Nano SIM card slot, 4* DI, 4* DO, 3* GND_DI, 2* GND_DO, 1* GND_ISO, 1* CAN, 1* DB9 (RS232/RS422/RS485) |
1* 40-pin header
1*12-pin Control and UART header |
DI/DO/CAN/RS232, RS422 and RS485/TPM 2.0 header
|
2* Drive Bays to support 2.5" SATA HDD/SSD (SATA III 6.0Gbps)
1* Nano SIM card slot, 4* DI, 4* DO, 3* GND_DI, 2* GND_DO, 1* GND_ISO, 1* CAN, 1* DB9 (RS232/RS422/RS485) |
40-pin header(UART, SPI, 12S I2C, SPI, CAN, PWM, DMIC, GPIO)
12-pin automation header 10-pin JTAG header |
|
Power Adapter
|
DC Barrel Jack 12V/2A
|
DC Barrel Jack 12V/5A (5.5/2.1mm)
|
19V Power Adapter (without power cord)
|
DC Barrel Jack 12V/5A
|
DC Barrel Jack 12V/5A
|
19V Power Adapter (without power cord)
|
DC Barrel Jack 12V/5A
|
19V Power Adapter (without power cord)
|
DC 12V/9A
|
|
Dimensions
|
130mm X 120mm X 50mm
|
159mm x 155mm x 57mm
|
132mm x 124mm x 233mm
|
130mm X 120mm X 50mm
|
159mm x 155mm x 57mm
|
194.33mm x 187mm x 95.5mm
|
130mm X 120mm X 50mm
|
159mm x 155mm x 57mm
|
194.33mm x 187mm x 95.5mm
|
110mm x 110mm x 71.65mm
|
Seeed Studio
Featured Resources Across Diverse AI & ML Applications
Jetson Series Edge Collection
Explore the full collection collection that we would like to deliver for you based on NVIDIA Jetson platform. You’ll find wide range of hardware products, successful solutions on site, amazing Edge AI ecosystem partners, and latest news.
Deploy Vision AI on Jetson
Dive into our vision AI resource universe with practical knowledge and hitting demos to accelerate your computer vision development and deployment! Kickstart your next AI application with Seeed’s hardware powered by NVIDIA Jetson platform.
Local LLM from Specialist to General
Discover vast possibilities of generative AI and link the potential with practical applications in the physical world! Learn more about deploying Large Language Models on Jetson Orin devices, combining with comprehensive understanding of tutorials about VLMs, ViTs, and more.
Community
Edge AI from 0.1 to ∞
Start and Accelerate your next-gen AI product with NVIDIA Jetson Embedded System. Grow up with Seeed Ecosystem Community and Partners.
